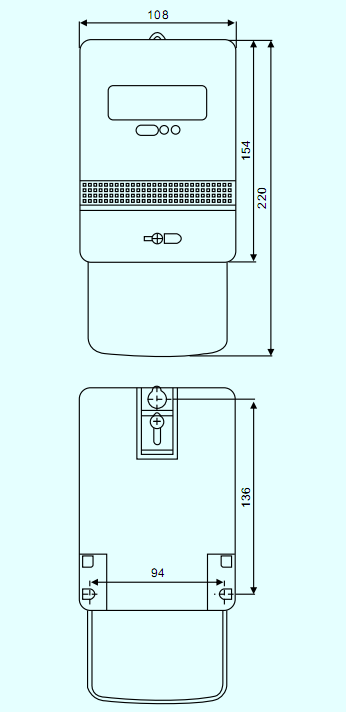

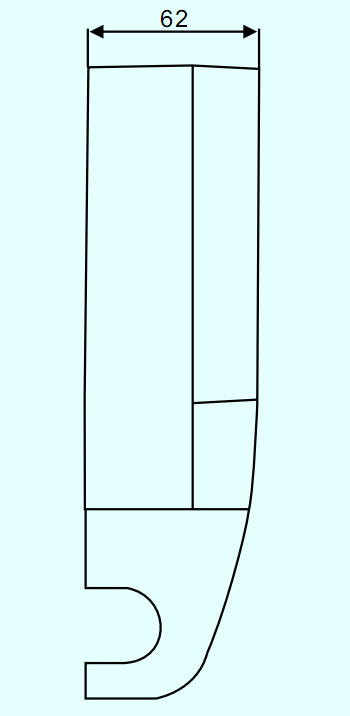

◈Overall and installation dimension

|
▷Product Overview
This energy meter used for measuring rated frequency 60Hz(optional 50Hz),Rated voltage 240V, single phase AC active energy, The meter adopts
large scale integrated metering circuit of anti-tamper and SMT technology. In
order to ensure the accuracy and rel iabi l ity of the measurement, power is
displayed on LCD, The data won’t lose after power cut off.
The product compl ies with the technical requirements of IEC62053-21,
IEC62052-11 standard single phase electronic energy meter.
|
▷Features
●It has the advantages of high rel iabi l ity, simple structure, high accuracy of
measurement.
● Low power consumption, The consumption doesn’t measure by energy meter
● Low starting power
● Anti-tamper resistant design to minimize the power steal ing. The meter sti l l
record energy even there is reverse.
● It displays real-time power and indicate direction of energy
● It used double loop measurement design and has the function of anti-tamper.
● There is indicator of anti-tamper, reverse and pulse
● It has infrared communication port, You can set up the meter serial number
and read the power.
● It displays 5+1 by large LCD and easy to read. Has smal l error.
|
▷The main technical parameter
|
Accuracy class
|
class 1.0、class 2.0
|
|
Voltage Specifications
|
240V
|
|
Current specifications
|
1.5(6)A、5(30)A、10(40)A、15(60)A、15(100)A
|
|
Pulse constant
|
6400imp/kWh、3200imp/kWh、1600imp/kWh
|
|
Rated Frequency
|
60Hz
|
|
