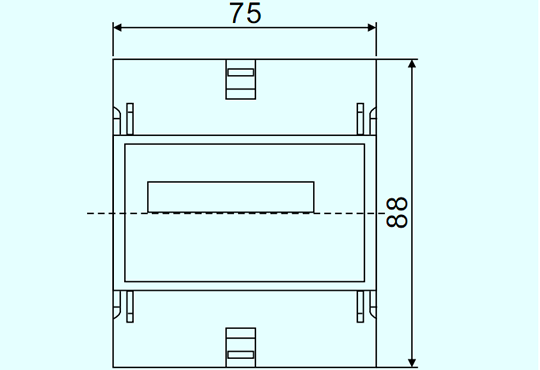

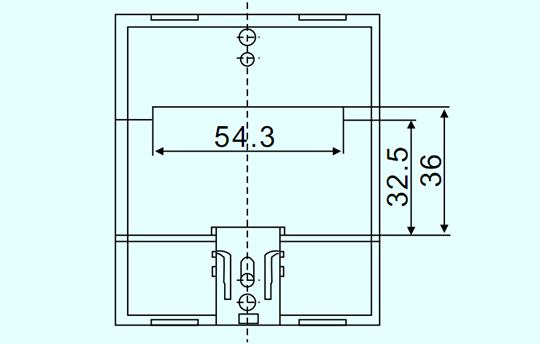

◈Overall and installation dimension

|
▷Product Overview
The single-phase active energy meter using the latest release of the ASIC ADE7755 energy meter design and manufacture of high precision, good l inearity,
wide operating voltage range and high rel iabi l ity, low power, wide loads etc.
Appl ies to rated voltage 220V. Rated frequency 50Hz AC single-phase active
energy measurement.
The products comply with IEC 62053-21,IEC 62052-11 and effective energy (1
and 2) the exchange of static watt-hours sheet test.
|
▷Features
● active energy metering, long-term work is not to adjust;
● using ADE7755 special measuring chip;
● using the latest embedded digital multipl ier foreign power appl ication specific
integrated circuit, greatly increased the instruments dynamic range, the actual
overload up to 10 times more;
● at 5% Ib ~ Imax good within the error of linear;
● external components, low power consumption, meter, simple structure;
● meter al l the elements are optional long-l ife, high rel iabi l ity electronic
components, and thus has a long l ife and high rel iabi l ity characteristics;
|
▷The main technical parameter
|
Rated current
|
2.5 (10)A、 5 (20)A、 5 (30)A、10 (40)A、 15 (60)A、 20 (80)A
|
|
Rated voltage
|
220V、230V
|
|
Rated frequency
|
50Hz、60Hz
|
|
The accuracy class
|
class 1.0、class 2.0
|
|
