LT-E96BHD Active and reactive combined meter (RS485 MD)

Related Products

暂无内容

Description	Send Enquiry

model

1.Product introduction
This series multi-function network meter is one kind of which can be programmed, display, digital communication and output pulse etc. It can measure energy measurement, data display, data acquisition and transmission, widely used in substation automation, distribution automation, intelligent building, enterprise internal electrical energy measurement, management and examination. Led local displaying and RS-485 remote digital communication interface, 2 circuit can output and 4 analog pulse transmission (DC0~20mA/DC4~20mA) output function can be to achieve the power and power transmission output function; 4-way switch input and 4-way switch It can realize the function of local or remote switch signal monitoring and control output ("remote signal" and "remote control" function), which can realize the alarm and automatic control function of multiple parameters.。

2.Technical parameter

performance			parameter
Input voltage display	network		Three-phase three wire, three-phase four wire
	Electric pressure	Rated value	AC100V、400V(please specify when ordering)
		Over load	continued：1.2times instantaneous：2Times /10s
		consumption	〈1VA（Each phase）
		impedance	〉300kΩ
		accuracy	RMS measure，Precision grade0.5，1.0
	Electric current	Rated value	AC1A、5A（Please specify when ordering）
		Over load	continued：1.2times instantaneous：2times/10s
		consumption	〈0．4VA（Each phase）
		impedance	〈20MΩ
		accuracy	RMS measure，Precision grade0.5，1.0
	frequency		40~60Hz
	function		Active power, reactive power, apparent power, power factor
	electric energy		Four phase measurement, active power, reactive power measurement, positive and negative phase active, reactive power measurement
	display		Programmable, switching, cycle of the 2,3,4 row LED display
Power Supply	Scope of work		AC、DC 80~270V
	power waste		≦5VA
output	Digital interface		RS-485、MODBUS-RTU agreement
	Pulse output		2 way electric energy pulse output, Optocoupler
Environment	work environment		-10~55℃
	Storage environment		-20~75℃
security	Pressure		Input and power >2kV, input and output >2kV, power supply and output >1kV
	insulation		Input, output, power supply to casing>5MΩ
appearance	size		size: 12012085mm；969685mm
	weight		0．6kg

3.Installation and wiring

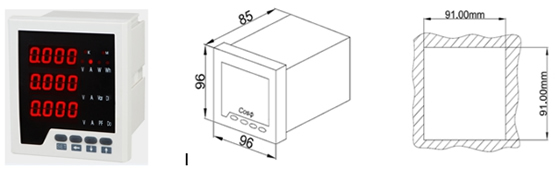

3．1 Meter size

Exterior code	Exterior dimension(mm)	Opening size(mm)	Minimum installation distance		Total length(mm)
Exterior code	Exterior dimension(mm)	Opening size(mm)	level(mm)	vertical(mm)	Total length(mm)
42	120×120	111×111	120	120	85
96	96×96	91×91	96	96	85

3．2 Installation method
(1) Holes in the size of the opening of the fixed distribution cabinet；
(2) Take out the instrument, loosen the screw and remove the fixed bracket.；
(3)Meter from the front insert mounting hole；
(4) Insert instrument mounting bracket and screw down the screws.。
3．3Terminal wiring diagram

(notes1：Size different wiring methods are the same)
（notes2：An asterisk current line into the line, line and reverse power measurement to reverse power。）
4.Programming operation
4．1 Entry and exit programming status
Enter programming state:
Press "SET" key when measuring display status，Enter password authentication page，use “▲”key and“▼”key Enter password (Default user password9999)，According to the“SET”key Into the programming status page。Note: if you enter the password by pressing the "SET" button, the exit to the measurement display state, then the input password is not correct。
Exit programming status：
In the programming state, has been “SET” key，Exit the program status, will prompt the user to choose whether to save the settings，“yes” Save settings，“no” Do not save settings。Press“SET” key preservation。
4．2 Programming operation in the use of keys
Function key SET：Confirm the setting value, enter the next setting or exit setup。
Return key ◄：To return to the previous menu。
Add keys ▲：The numerical value of the digital tube is increased。
Reduce key ▼：Numerical reduction of digital tube。
4．3Set parameter description

menu	Content description	display	Range
CODE	Enter menu password	Code	0~9999
	Note: enter the password to enter the menu, only the correct password to enter the menu, the factory default value is 9999
SET	Connection mode	NEt	3P3L、3P4L
	Description: 3P3L three-phase three wire connection method, 3P4L three-phase four wire connection method
SET	Voltage ratio	Pt	1~9999
	Description: this setting for the line with the PT ratio, the factory pre set to 1, such as the line with the PT type: 10kV/100V, the setting value is 100
SET	Current ratio	Ct	1~9999
	Description: this setting for the line with the CT ratio, the factory pre set to 1, such as the line with the CT type: 600A/5A, the setting value is 120
SET	Two voltage rating	USCL	400U、100U
	Description: selection of two voltage rating
SET	Two voltage rating	ISCL	5A、1A
	Description: two current rating selection
SET	Display mode	diSP	0~8
	Description: 0 for the page to automatically switch; 1~8 set to manually switch the display
SET	Electric energy clear 0	Eclr	yes、no
	Description: Yes electric energy data 0, no electric energy data unchanged
SET	Password settings	CodE	0~9999
	Note: reset the password to enter the menu, the factory default value of 9999
SET	mailing address	Addr	1~247
	Description: instrument address, multi machine communication for the identification of the machine
SET	Baud rate	bAUd	4800、9600
	Note: RS485 is used to set the communication baud rate, factory default value is 9600
Do-1	Switch output 1 output settings	0000	0~52
		Sets the output of the switching value corresponding to the signal parameters and the upper or lower limit output
		2200	0~9999
		Set the output of the switching value corresponding to the two limit value of the output of the signal parameters
Do-2	Switch output 2 output settings	0000	0~52
		Sets the output of the switching value corresponding to the signal parameters and the upper or lower limit output
		2200	0~9999
		Set the output of the switching value corresponding to the two limit value of the output of the signal parameters
Do-3	Switch output 3 output settings	0000	0~52
		Sets the output of the switching value corresponding to the signal parameters and the upper or lower limit output
		2200	0~9999
		Set the output of the switching value corresponding to the two limit value of the output of the signal parameters
Do-4	Switch output 4 output settings	0000	0~52
		Sets the output of the switching value corresponding to the signal parameters and the upper or lower limit output
		2200	0~9999
		Set the output of the switching value corresponding to the two limit value of the output of the signal parameters
Ao-1	Analog output settings 1	0000	0~52
		Set analog output corresponding signal parameters and output current
		2200	0~9999
		Set the analog output corresponding to the signal parameters of the output value of two
Ao-2	Analog output settings 2	0000	0~52
		Set analog output corresponding signal parameters and output current
		2200	0~9999
		Set the analog output corresponding to the signal parameters of the output value of two
Ao-3	Analog output settings 3	0000	0~52
		Set analog output corresponding signal parameters and output current
		2200	0~9999
		Set the analog output corresponding to the signal parameters of the output value of two
Ao-4	Analog output settings 4	0000	0~52
		Set analog output corresponding signal parameters and output current
		2200	0~9999
		Set the analog output corresponding to the signal parameters of the output value of two
SET	Save parameter modification value selection	SAVE	yes、no
	Note: Yes save the parameters of the modified value, no before the parameter values unchanged

5. Panel description and measurement information display

page	content	explain
1 three-phase voltage		Respectively display voltage UA, Ub and UC (three phase four line) or UAB, UBC, UCA (3 phase 3 line), the unit is V, K indicator lights of the Uc=220.1V Ub=220.3V Ua=220.0V kV. The picture to the left。 In the 3 phase 4 wire, press“◄”key can be used for phase voltage and wire voltage switching display.。
2 three-phase current		3 phase current of Ia, Ib, Ic unit Ia=5.000A, A. left Ib=4.998A, Ic=5.001A。
3 Active power, reactive power, power factor		Display active power W, reactive power Var, power factor PF, in the left drawing, W=3.142KW Var=1.009KVar, PF=0.952。
4 Frequency, first to fourth way out of the information, first to fourth way to open the information		The switch input status information (DI), from left to right is fourth road, Third Road, first road is on state, and the second way is off state.。 The switch input status information (DO), from left to right is the fourth way, the first way is off state, the third way, and the second way is the leading state. Display frequency. Frequency HZ=50.00Hz。
5 Positive active power		Display positive active electric energy value, the second row digital tube is four high, 3rd row is low 4 bits, forming a 8-bit values. The image on the left shows active electric energy value for 6123.05KWh.
6 Positive reactive power		Display positive reactive power value, the second row digital is four high, 3rd row is low 4 bits, forming a 8-bit values. The image on the left shows emotional reactive power value is 154.05KVarh。
7 Reverse active power		Display negative active energy value, the second row digital is four high, 3rd platoon is low 4 bits, forming a 8-bit values. The image on the left shows active electric energy value for 6123.05KWh.
8 Reverse reactive power		Display negative reactive power value, the second row tube is four bit higher, 3rd row is lower 4 bits, forming a 8-bit values. The image on the left shows emotional reactive power value is 154.05KVarh。

6、functional module
6．1 RS485communication
6．1．1 physical layer
(1) RS485 Communication interface, asynchronous half duplex mode。
(2) 4800,9600bps baud rate can be set, the factory default value is 9600 BPS。
(3) Byte transfer format: N81 no parity bit 1 data bits 8 stop bits。
6．1．2 communication protocolModbus-RTU
This instrument provides serial asynchronous half duplex RS485 communication interface, using standard MODBUS-RTU protocol, all kinds of data and information can be found in the communication line transmission. In a line can also connect up to 64 network instrument, each network meter can set the address and communication even collusion with copper net shielded twisted pair, wire diameter not less than wiring 0.5mm2. should enable communication line away from the high voltage cable, or other strong electric field environment, recommended the use of the T type network connection, does not recommend the use of a star or other connection。
MODBUSBetween terminal equipment protocol in a communication line using master-slave response mode of communication connection mode. First of all, the main computer signal is addressed to only allowing communication between the host (PC, PLC, etc.) and the terminal equipment of a unique address terminal equipment (slave), then sent from the terminal unit of the response signal transmission in the opposite direction to the host, namely: in a single communication line signal along the opposite direction of transmission all communication data flow (half duplex mode) protocol. MODBUS without allowing independent data exchange, this kind of the terminal device does not initialize them occupy the communication line , but only in response to the machine's query signal。

Host queries: query message frame including device address, code and data information code, check code. Address code that is selected from machine equipment; functional code tell is selected from the device to perform what function, such as function code 03 is requirements from the device reads the register and return their contents; data segment contains from the device to perform the function of any additional information, check code used to test the correctness of a frame of information, from the device provides a validation message content to check the correctness of the method, which adopts CRC16 calibration rules。
From the machine response: if have normal response from the device, in response to the news is from the machine address code, code, data information code and CRC16 checksum code. Data information code include from equipment to collect data, such as register values or states. If an error occurs, we agreed is from the machine does not respond。
We specify the communication data format used in this instrument: the bit of each byte (1 start bit, 8 data bits, no parity, 1 stop bits).。
Data frame structure, namely message format：

Device address	Function code	Data segment	CRC16 check code
1 byte	1 byte	Byte N	2 byte

Device address: by a byte, in our system, only the use of 1~247, other address reservation. The address of each terminal device must be unique, only to be addressed to the terminal will respond to the corresponding query。
Function code: tells the address to the terminal to perform what function. The following table lists the series of instruments supported by the functional code, as well as their functions。

Function code	function
03H	Read the values of one or more registers
10H	Write the value of one or more registers

Data segment: data that contains the data required to perform a specific function or terminal response to a query. The contents of these data may be numeric, reference, or set values.。
Check code: CRC16 occupied two bytes, contains a 16 bit binary value value by the transmission equipment calculated.CRC and then attached to the data frame, receiving equipment calculates CRC value again when receiving data, then compares the value with the received CRC domain, if the two values are not equal, error occurs。
The process for generating a CRC16 is：
(1) Preset a 16 bit register to 0FFFFH (1), called the CRC register。
(2) The low byte of the first byte in the data frame of the 8 bit CRC register with the XOR operation, the result is stored back into the CRC register。
(3) The CRC register to the right one, the high fill to 0, the lowest detection and removal。
(4) If the least significant bit to 0: repeat the third step (a time shift); if the least significant bit to 1: CRC register and a preset fixed value (0A001H) is XORed with the。
(5) Repeat the third step and the fourth step until the 8 shift. This process is done with a full eight bit.。
(6) Repeat the second step to the fifth step to process the next eight bits, until all the byte processing ends。
(7)The value of the final CRC register is the value of the CRC16.。
6．1．3 Example of communication message：
(1) Read data register (function code 03H): read the three-phase current value, A phase voltage 218.79V, B phase voltage 219.79V, C phase voltage 220.79V, the instrument address is 1。
Host read data frame：

address	command	Start address (high in front)	Register number (high in front)	Check code (low in front)
01H	03H	00H,17H	00H,06H	75H,CCH

Instrument response data frame：

address

command

Data length

Data segment (12 bytes)

Check code

01H

03H

0CH

435ACC9DH, 435BCC9DH, 435CCC9DH,

94H,C8H

(2) Write data register (code 10H): set the current ratio of CT=300, voltage ratio of PT=100 is 1 meters.。 Host write data frame：

address	command	Start address	Register number	Number of bytes	Data segment	Check code
01H	10H	00H,02H	00H,02H	04H	00H,64H,01H,2CH	33H,E4H

Instrument response data frame：

address	command	Start address	Register number	Check code
01H	10H	00H,02H	00H,02H	E0H,08H

6．1．4 Modbus Communication register address table

address	Project description	data type	attribute	explain
0	Enter menu password	Int	R/W	Range:0~9999
1	Baud rate	Int	R/W	2:9600bps 0:4800bps
1	mailing address	Int	R/W	Range:1~247
2	The voltage ratio of PT	Int	R/W	Range:1~9999
3	The current ratio of CT	Int	R/W	Range:1~9999
4	Electric parameter display mode	Int	R/W	See menu setting for this description
4	Input signal connection mode		R/W	80: three-phase three wire, 0: three-phase four wire
5~21	retain
22	Telesignalling	Int	R/W
23、24	A phase voltage	float	R	Float for floating point format, in accordance with the IEE754 standard for all data is a side of the data, floating-point format see additional instructions
25、26	B phase voltage	float	R
27、28	C phase voltage	float	R
29、30	AB phase voltage	float	R
31、32	CA phase voltage	float	R
33、34	BC phase voltage	float	R
35、36	A phase current	float	R
37、38	B phase current	float	R
39、40	C phase current	float	R
41、42	A phase active power	float	R
43、44	B phase active power	float	R
45、46	C phase active power	float	R
47、48	Psum	float	R
49、50	Reactive power of A phase	float	R
51、52	Reactive power of B phase	float	R
53、54	Reactive power of C phase	float	R
55、56	Total reactive power	float	R
57、58	A looked at each other in power	float	R
59、60	B looked at each other in power	float	R
61、62	C looked at each other in power	float	R
63、64	Total apparent power	float	R
65、66	A phase power factor	float	R
67、68	B phase power factor	float	R
69、70	C phase power factor	float	R
71、72	Total power factor	float	R
73、74	frequency	float	R
75、76	Positive active power	float	R
77、78	Positive reactive power	float	R
79、80	Reverse active power	float	R
81、82	Reverse reactive power	float	R
83	DO switch output	int	R
84	DI switch input	int	R

6．2 Electric energy measurement and electric energy pulse output
Multifunctional digital power meter can provide bidirectional active power, bi-directional power energy metering, 2 circuit can pulse output function and RS485 digital interface to accomplish the electric energy data display and remote transmission. Collector open optocoupler relay electric energy pulse realization of active electric energy and non energy of far transmission, the remote computer terminal, PLC, di switch acquisition instrument of pulse number to implement cumulative metering. The output power of precision test way is (national measurement procedures: standard meter pulse error comparison method)。
(1) Electrical characteristics: the circuit diagram of the pulse collecting interface VCC≤48V、Iz≤50mA 。
(2) Pulse constant: 3200 imp/kWh; when the accumulated instrument of 1kwh pulse output the number of N=3200, needs to be emphasized is 1kwh electricity secondary electrical measurement data, the Pt, CT, the relative n pulse data corresponding to 1 times the measured electric to 1kwh * voltage Pt ratio x current CT ratio。
(3) Application example: PLC terminal using pulse counting device, it is assumed that the time length of T for a period of time for the acquisition of a number of pulses of N, the instrument input as：10kV/100V，400A/5A，In this time period, the meter electric energy accumulation is：N/3200×100×80 degree electric energy。
6．3Switch input section
Switch quantity input part: the 4-way switch quantity input function. 4 way switch input is the use of stem nodes resistive switching signal input, internal instrument equipped with a + 5V power supply, without external power supply. When connected to an external, through the instrument switch input module Di collecting the connected information, showing 1; when external disconnect, after the instrument switch input module Di collected to disconnect, shows 0。

1）.Electrical parameters：
Open DI：Switch on resistance R＜500Ω；Turn off resistance R＞100KΩ
2).register：
DI Information register: the register indicates the state information of the 4 way switch input.。

DI register	BIT15～BIT4	BIT3	BIT2	BIT1	BIT0
Corresponding switch port		Di4	Di3	Di2	Di1
reset	Irrelevant bits	0	0	0	0

DI Low information register 4 bits (BIT3, BIT2, BIT1, BIT0) is the state information of the switch input. If the register content is 00000101, it indicates that the switch input port 3, 1 for the pilot, 4, 2 for off。
3）.Application for column：
Switch input function：
Switch module with a 4 channel switch quantity input acquisition function, after the input signal is acquired, instrument panel LED display the "mediated through - 1" or "shutdown - 0" information, local monitor for on-off signal. The meter is switched to switch display state of information, at this time, "Di" indicator light. Panel on the top row of digital tube display switch input state information (DI), from left to right, followed by the fourth road, Road No. 3, No. 2 Road, the road right said no. 4 road, Road No. 3, the road to conducting state, the second is the off state。
Through the instrument RS485 digital interface, the switch information register (DI) information can be transmitted to the remote computer terminal.。
6．4Switch output section
Switch quantity output part: 4 way relay output switch function, alarm indication for various places, protection control output function. When the output switch and effective, relay output turn-on, output switch is switched off, the relay output shutdown。

1）.Electrical parameters：
Open DO：AC250V 1A
2).register：
DO Information register: the register indicates the state information of the 4 way switch output.。

DO register	BIT7 ～BIT4	BIT3	BIT2	BIT1	BIT0
Corresponding switch port		Di4	Di3	Di2	Di1
reset	Irrelevant bits	0	0	0	0

The low 4 bits (BIT3, BIT2, BIT1, BIT0) of the DO information register is the state information of the switch output. If the content of the register is 11010000, the port 1,3,4 is turned on, the 2 is off, and all the DO information can be displayed on the LED of the meter.。

project	variable	Setting method
Switch output 1	DO1	BYTE1 (1 ~ 52), alarm, even respectively corresponding electricity address table corresponding 26 measurement of high power alarm; odd corresponding electricity address table corresponding 26 measurement power low alarm; 0: remote. Please refer to the switch output, transmission output power reference number of the control table.BYTE2 (0 to 9999), the alarm limit parameter is the value for the electric parameters of the quadratic, data format, see Appendix
Switch output 2	DO2
Switch output 3	DO3
Switch output 4	DO4

Switch output function：
Remote control function：
Host write data frame：

address	command	Start address	Register number	Number of bytes	Data segment	Check code
01H	10H	00H,16H	00H,01H	02H	00H,06H	24H,A4H

Instrument response data frame：

address	command	Start address	Start address	Check code
01H	10H	00H,16H	00H,01H	E0H,0DH

Set the switch in the object and disconnected, conduction conduction (information YCDO to through the PC register 16h) write control information, can control 4 way switch output port of the on-off, write 1 corresponds to the port, write 0 corresponds to the port shutdown. Write 2 hexadecimal number coming, said 2 Road, 3 Road switch output port, 1 Road 4 road. The function can not switch output module on a more limited alarm output function at the same time, to use the remote control function, the power parameter is set to 0, that is off the alarm output function, the instrument output function 2 line parameters. The upper right graph in remote control state said the 4 Road, the first way is off state, Third Road, second road for the state。

Also a function of output switch module is the limit alarm output. Set the scope of electric parameters, when the measurement of electrical parameters across the set range, corresponding to the switch output port for conducting state, and the corresponding position of the panel display 1, when the signal back to the range of parameter displayed after a variable. Directly through panel key operation, the alarm and the alarm value setting。 Switch output, variable output power parameter control table

project	Switch output		Variable transmission出
project	Corresponding parameters（High alarm）	Corresponding parameters（Low alarm)	Corresponding parameters （4～20mA）	Corresponding parameters （0～20mA）
Ua (A phase voltage)	1	2	1	2
Ub (B phase voltage)	3	4	3	4
Uc（C phase voltage）	5	6	5	6
Uab(AB line voltage)	7	8	7	8
9	10	9	10
Uca(CA line voltage)	11	12	11	12
Ia (A phase current)	13	14	13	14
Ib （B phase current）	15	16	15	16
Ic （C phase current）	17	18	17	18
Pa (A phase active power)	19	20	19	20
Pb （B phase active power）	21	22	21	22
Pc （C phase active power）	23	24	23	24
Ps （Psum）	25	26	25	26
Qa (Reactive power of A phase)	27	28	27	28
Qb （Reactive power of B phase）	29	30	29	30
Qc （Reactive power of C phase）	31	32	31	32
Qs （Total reactive power）	33	34	33	34
Sa (A looked at each other in power)	35	36	35	36
Sb （B looked at each other in power）	37	38	37	38
Sc （C looked at each other in power）	39	40	39	40
Ss （Total apparent power）	41	42	41	42
PFa (A phase power factor)	43	44	43	44
PFb （B phase power factor）	45	46	45	46
PFc（C phase power factor）	47	48	47	48
PFS（Total power factor）	49	50	49	50
F （frequency）	51	52	51	52

Alarm parameter calculation method：
The calculation formula of the limit parameter value of electric parameters：

The value of the set value and the value of the two values are the same.。
Programming examples: for three-phase four wire system 400A/5A; 10KV/100V of the instrument set, the set value should be written as：

Set requirements	Alarm condition	range		Programming setting parameters
Set requirements	Alarm condition	Primary measurement value	Two measuring range	Electrical parameters Corresponding parameters	Set value
Voltage alarm	Ua＞100V	10KV	100.0	1	1000
	Ub＞110V			3	1100
	Uc＜80V			6	800
Current alarm	Ia＞400A	400	5.000	13	5000
	Ib＜360A			16	4500
	Ic＜40A			18	500
Power alarm	Ps＞12MW	12MW	1500	25	1500
	Pa＞4MW	4MW	500	19	500
	Pb＜2MW	4MW	500	22	250
Power factor alarm	PFs＞0.9	1	1.000	49	900
	PFa＞0.866			43	866
	PFs＜0.5			46	500

6．5Send an analog quantity output module
An analog quantity to send output module: the provides 4 analog output sending function and each can choose 26 electric parameters in any one set by instrument itself the analog quantity send module function, output function in simulation of electric parameter (0 ~ 20mA/4 ~ 20mA) and its corresponding to the number of relations can be set arbitrarily。
1）.Electrical parameters：output0～20mA、0～20mAPrecision grade0.5%
Over load：120%Effective output，Maximum current24mA、Voltage12V.
Negative load：Rmax=400Ω
2）.register：
Instrument programming keyboard settings, to achieve the 4 way analog output settings, including the choice of the need to change the power supply and the full range of 20mA output parameters。

project	variable	Setting method
Switch output 1	DO1	BYTE1 (1 ~ 52), alarm, even respectively corresponding electricity address table corresponding 26 measurement of high power alarm; odd corresponding electricity address table corresponding 26 measurement power low alarm; 0: remote. Please refer to the switch output, transmission output power reference number of the control table.BYTE2 (0 to 9999), the alarm limit parameter is the value for the electric parameters of the quadratic, data format, see Appendix
Switch output 2	DO2
Switch output 3	DO3
Switch output 4	DO4

project	variable	Setting method
Variable output 1	AO1	BYTE1 (1 ~ 52), alarm, even respectively corresponding electricity address table corresponding 26 power measurement 4mA to 20mA output; odd, respectively, corresponding to the address table power corresponding 26 power measurement 0 ~ 20mA output; please refer to the output switch, transmission output power parameter control table.BYTE2 (0 to 9999), 20mA output, the corresponding parameter values, data format, see Appendix
Variable output 2	AO2
Variable output 3	AO3
Variable output 4	AO4

The electrical parameter calculation quantity transmitting output value: two times the rated value。

Programming examples: for three-phase four wire system 400A/5A; 10KV/100V of the instrument set, the set value should be written as：

Set requirements	Changing condition	range		Programming setting parameters
Set requirements	Changing condition	Primary measurement value	Two measuring range	Electrical parametersCorresponding parameters	Set value
Voltage change	Ua:0-10kV/4-20mA	10KV	100.0	1	1000
	Ub:0-10kV/4-20mA			3	1000
	Uc:0-10kV/0-20mA			6	1000
Current transmission	Ia:0-400A/4-20mA	400	5.000	13	5000
	Ia:0-400A/0-20mA			16	5000
	Ib:0-400A/0-20mA			18	5000
Power transfer	PS:0-12MW/4-12-20mA	12MW	1500	25	1500
	Pa:0-4MW/4-12-20mA	4MW	500	19	500
	Pb:0-4MW/0-10-20mA	4MW	500	22	500
Power factor variation	PFs:0-1/4-12-20mA	1	1.000	49	1000
	Pfa:0-1/4-12-20mA			43	1000
	Pfa:0-1/0-10-20mA			46	1000

Addendum to the two rating and the two value：
(1)Voltage is two times the value of the voltage, fixed 1 decimal places。
(2)The current is two times the current value, fixed 3 bit digital。
(3) Power is the two power value, fixed 0 bit digital。
(4) Fixed 3 bit number of power factor。
(5) Frequency fixed 2 bit digital。
Floating point conversion appendix：

Floating point acquisition of a secondary acquisition of 4 bytes. Acquisition is high in the former, low in the post acquisition to the first BYTE1 in the most previous, BYTE4 in the final。

BYTE1
S	E1	E2	E3	E4	E5	E6	E7
BYTE2
E8	M1	M2	M3	M4	M5	M6	M7
BYTE3
M8	M9	M10	M11	M12	M13	M14	M15
BYTE4
M16	M17	M18	M19	M20	M21	M22	M23
